Main Technical Parameters
Item
MB10ZK16-100G
Model
Bag size
W: 55-100mm, L: 70-180mm

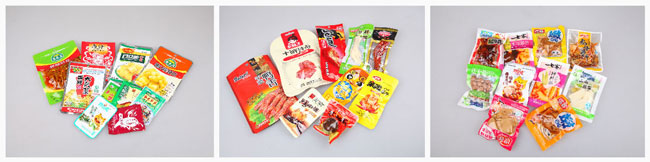

Bag type
Aluminum foil bags, nylon bags, paper bags and other four-side sealed composite bags
Filling range
10-60g
Packing speed
90-110 bags/min
Host weight
3000kg
Host power
6KW (without vacuum pump)
Drive power
Three-phase five-wire 380V 50HZ

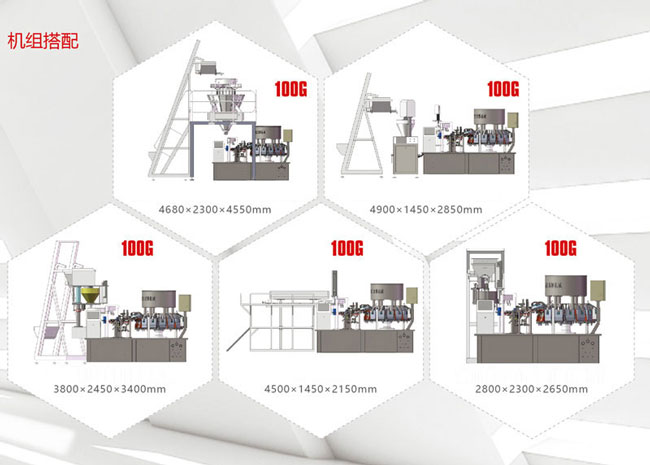

Dimensions
2600×1450×1900mm
Air consumption
≤0.5m³/min (compressed air is provided by the user)
Cooling water
Cooling water 15℃-20℃, 3L/min
